W16 | Three Lights- Main, Standby and Emergency. Light at point



3 Lights Main, Standby and Emergency and Old Light at Point.

Electric Light

Character of Light: Isophase White every 4 secs. Flash 2 secs. Dark 2 secs. Total period 4 secs.

Visible:  from 313° - 133° = 180° Nominal Range: 16 miles. 21000 candelas.  Lamp: 1500W 100V 1.24

Height above high water: 52m. Each light has a different characteristic.  Fastnet flashes once evey 5 secs and Bull Rock once every 15 secs.

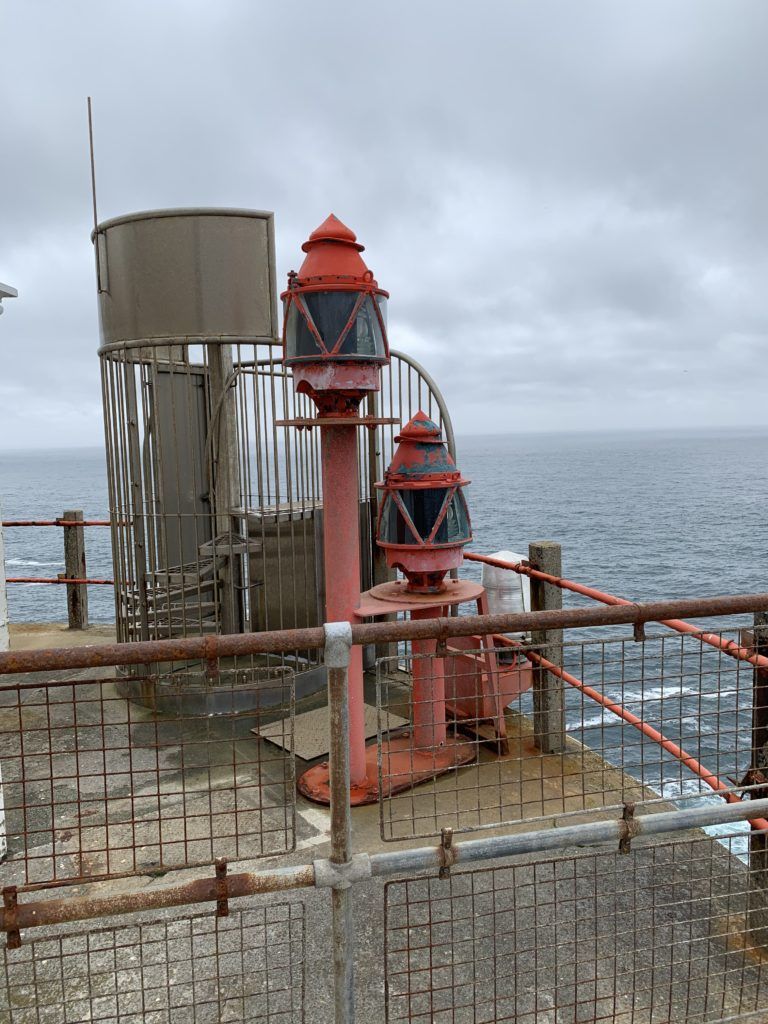

Emergency Light.

Tideland ML300 Lantern

Duo Flasher twin filament 10.3V 10W Lamp.

Range 6 nautical miles.

Tideland Photocell in window of lighthouse.

Fog Signal House

This hexagonal house is now empty, but it was used to relay information up to the computers in the CIL house up near the car park. It was built as the Fog Signal House. When the Fog Signal was discontinued and  a Racon Beacon was installed on the top of the house. And its control cabinet was put inside. Details of the Explosive Fog Signal are in the Mizen file linked at the end of the page.
